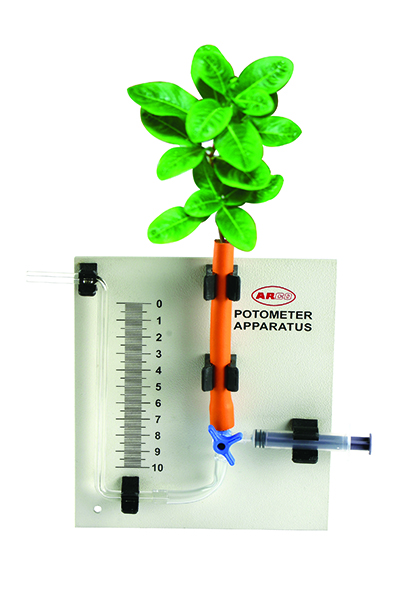

Potometer
Catalogue No. 4011950
To measure transpiration, without breakage. Only one glass component (the capillary tube) and is mounted on a strong backing plate. It consists of a capillary tube with millimetre scale connected via a three way tap to a syringe. The cut shoot is connected to the third outlet. It can also be used to measure humidity by connecting a porous pot to the third outlet. Dimensions overall 155 x 165 x 60mm (width x height x length). Capillary tube 120 x 1mm (length x bore).
To measure transpiration, without breakage. Only one glass component (the capillary tube) and is mounted on a strong backing plate. It consists of a capillary tube with millimetre scale connected via a three way tap to a syringe. The cut shoot is connected to the third outlet. It can also be used to measure humidity by connecting a porous pot to the third outlet. Dimensions overall 155 x 165 x 60mm (width x height x length). Capillary tube 120 x 1mm (length x bore).
Related products
-
Plants Physiology
Potometer
Catalogue No. 4011960
Use to measure transpiration, without breakage. Only one glass component (the capillary tube) and is mounted on strong backing plate. It consists of a capillary tube with millimetre scale connected via three way tap to a syringe. The cut shoot is connected to the third outlet. It can also be used to measure humidity by connecting a porous pot to the third outlet.
SKU: 4011960 -
Plants Physiology
J Tube, Screw Fitting
Catalogue No. 4012300
Glass J-tube formed from 1mm bore thick walled capillary tube, with a brass screw and collar at the end of the longer limb. Used for sampling small quantities of gas held over water (e.g., in photosynthesis or respiration experiments). A bubble of gas is introduced into the short limb. This is then lowered into reagent solution and the bubble moved back and forth so that reagent diffuses through the end water seal. The change in length of the bubble indicates the amount of gas taken up by the reagent. Use potassium hydroxide for CO2 or alkaline pyrogallol for O2. Dimension: long limb – 250mm and short limb – 100mm.
SKU: 4012300 -
Plants Physiology
Clinostat, Electrical
Catalogue No. 4012450
For demonstration of heliotropism and geotropism. Germinating seedlings are pinned to the cork table which is rotated by an electric motor at 5 revolutions per hour, and rated 220-240V, 50-60Hz, 5W. The motor is spindle mounted and may be clamped by a thumbscrew so that the plane of the table can be set at any angle. Slow rotation in the vertical or horizontal planes cancel out the effect of gravity and directional light. A Plastic cover is provided for the cork table to shield the seedlings from draughts. Diameter of cork disc is about 100mm.
SKU: 4012450
