Thoday’s Potometer
Catalogue No. 4012000

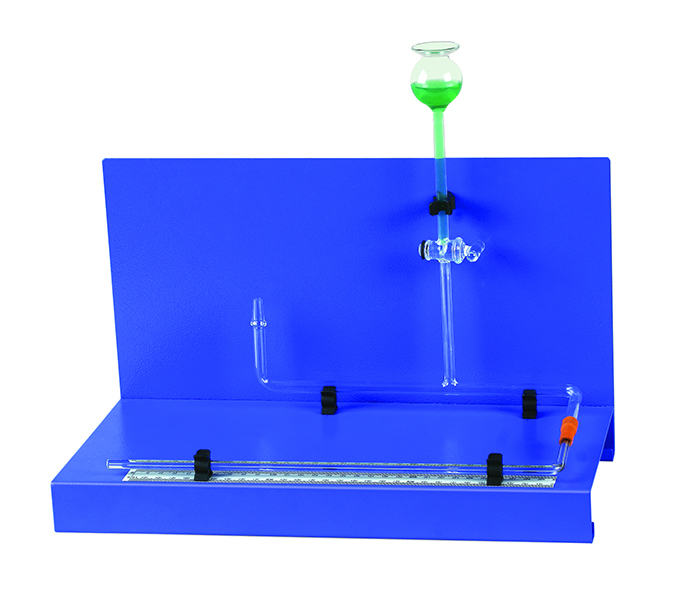

Comprises a horizontal glass tube with one end vertical to take a plant shoot and the other end connected by rubber tubing to narrow bore glass tube with a scale. A vertical limb on the tube is connected to a thistle funnel by rubber tubing fitted with a spring clip. Mounted on a wooden stand to which the plant shoot can be attached for support.
Comprises a horizontal glass tube with one end vertical to take a plant shoot and the other end connected by rubber tubing to narrow bore glass tube with a scale. A vertical limb on the tube is connected to a thistle funnel by rubber tubing fitted with a spring clip. Mounted on a wooden stand to which the plant shoot can be attached for support.
Related products
-
Plants Physiology
Photosynthesis Apparatus
Catalogue No. 4012200
For measuring and analyzing gas evolved by the plants such as Elodea. Comprise two syringes connected to a collecting tube through a 3-way tap. This arrangement enables the gas to be drawn along the capillary tube by one syringe for analysis. The apparatus is mounted on a back board about 240 x 100mm, capillary bore 1 mm.
SKU: 4012200 -
Plants Physiology
Clinostat, Electrical
Catalogue No. 4012450
For demonstration of heliotropism and geotropism. Germinating seedlings are pinned to the cork table which is rotated by an electric motor at 5 revolutions per hour, and rated 220-240V, 50-60Hz, 5W. The motor is spindle mounted and may be clamped by a thumbscrew so that the plane of the table can be set at any angle. Slow rotation in the vertical or horizontal planes cancel out the effect of gravity and directional light. A Plastic cover is provided for the cork table to shield the seedlings from draughts. Diameter of cork disc is about 100mm.
SKU: 4012450 -
Plants Physiology
Combination Dark Germination Chamber
Catalogue No. 4012600
For experiments in phototropism with seedlings. Three-chambered case of wood with to accept a variety of shutters. The right-hand chamber has windows in the top and back end, when used with a clear front window, acts as a control chamber. Supplied with opaque shutter, a slot shutter to admit light from one direction only, the clear windows for the control chamber, one orange and one blue filter to show the effect of excluding various parts of the spectrum. Complete with three glass containers for seedlings. Dimensions overall 180 × 530 × 180mm approx. (height × width × depth).
SKU: 4012600 -
Plants Physiology
Ganong’s Potometer with Glass Stop-cock
Catalogue No. 4012100/1
Comprises a graduated, narrow bore, horizontal glass measuring tube with a vessel for a plant shoot at one end and having a vertical limb with a stopcock and a funnel fitted by a ground glass joint. Mounted on a wooden stand. For Demonstration, of transpiration rates and rates of water absorption by a cut shoot under various external conditions. A plant shoot is sealed into a stopper which fits the end tube, and the whole apparatus is filled with water, the open end of the capillary tube, which is graduated in millimetres, dipping into a beaker of water. The position of the air bubble may easily be adjusted by opening the glass stopcock to admit water from the central reservoir. The whole apparatus is mounted on a varnished wooden base by spring clips. Comprises a graduate, narrow bore, horizontal glass measuring tubes with a vessel for plant shot at one end and having a vertical limb with a Teflon stopcock and a funnel fitted by a ground glass joint. Height to top of reservoir 170mm, Diameter of reservoir 20mm Length, overall 320mm, Base 320x80mm (L x W), Capillary bore 1mm.
SKU: 4012100/1
