Magnetism & Electromagnetism
Showing 97–112 of 168 results
-
Magnetism & Electromagnetism, Physics

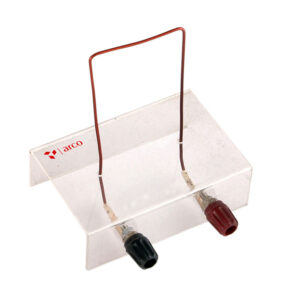

Magnetic Field Demonstration
Catalogue No: 1070360/2
For the study and demonstration of magnetic fields associated with different shapes / configurations of current carrying conductors. Mounted on clear transparent base permits its use on OHP for classroom demonstration. Each conductor accompanied with a pair of 4mm socket terminals. The field pattern can be observed through the iron filings or plotting compasses (not included). Comprises following conductor configurations:
* Vertical Wire: Copper wire 16 SWG. In vertical U shape. Maximum current is 8A.Pack of (Pcs): 1
SKU: 1070360/2 -
Magnetism & Electromagnetism, Physics

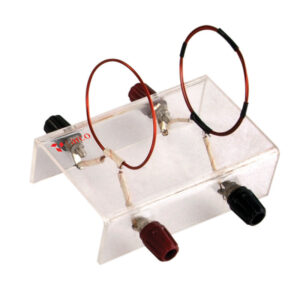

Magnetic Field Demonstration
Catalogue No: 1070360/3
For the study and demonstration of magnetic fields associated with different shapes / configurations of current carrying conductors. Mounted on clear transparent base permits its use on OHP for classroom demonstration. Each conductor accompanied with a pair of 4mm socket terminals. The field pattern can be observed through the iron filings or plotting compasses (not included). Comprises following conductor configurations:
* Vertical Coils: A set of 1 turn and 5 turn coils located side-by side on the base, each with separate pair of socket terminals. Maximum current for 1 turn coil is 8A and for 5 turn coil is 5A. By making the current flow through both of them, the cumulative effect of magnetic field of each can also be investigated.Pack of (Pcs): 1
SKU: 1070360/3 -
Magnetism & Electromagnetism, Physics

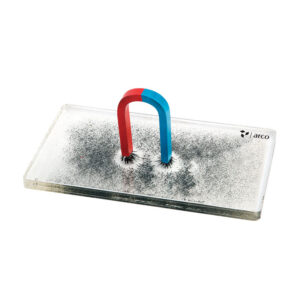

Magnetic Field Demonstration Plate
Catalogue No: 1070400
Comprises a rectangular chamber made of clear acrylic which is filled with oil and has high quality, iron filings freely suspended inside. Bringing a magnet in its vicinity makes the filings to align along the magnetic field.
* Magnetic Field Demonstration PlatePack of (Pcs): 1
SKU: 1070400 -
Magnetism & Electromagnetism, Physics

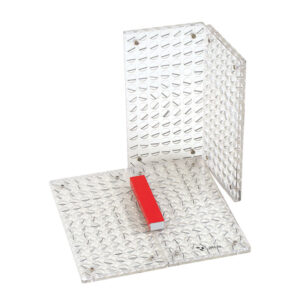

Magnetic Field Demonstrator
Catalogue No: 1070370
A set of two transparent plates of size (155 x 76 x 6mm) has a matrix of small circular chambers, each chamber containing a piece of iron wire that functions effectively as a plotting compass. The plates can be arranged in various configrations eg; as single large two-dimensional surface and as the faces of cube, so as to observe the configuration of a magnetic field in one or two dimensions with the attraction and repulsion properties of magnets. The transparent plates also makes them suitable for use on an overhead projector. A bar magnet is also provided with the kit.
* Magnetic Field DemonstratorPack of (Set): 1
SKU: 1070370 -
Magnetism & Electromagnetism, Physics

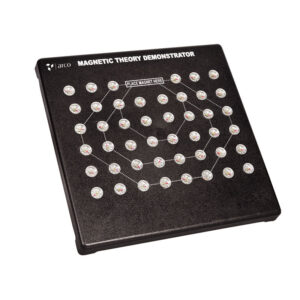

Magnetic Field Demonstrator
Catalogue No: 1070415
To demonstrate the magnetic lines of forces, 46 magnetic compasses are fitted on a (300 x 300)mm square plastic moulded base. On locating bar magne tat the marked place, compasses will align themself as per the magnetic field. Permanently fitted magnetic compasses provides advantage in easy handling and storage.
* Magnetic Field DemonstratorPack of (Pcs): 1
SKU: 1070415 -
Magnetism & Electromagnetism, Physics

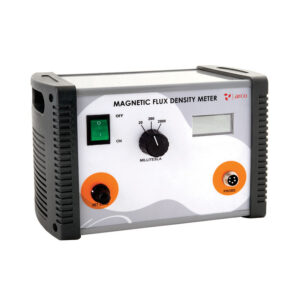

Magnetic Flux Density Meter
Catalogue No: 1070405
Designed to measure the magnetic field strength directly up to 2000mT (millitesla) with a range selector switch 20, 200, 2000mT On connecting the Hall Effect Probe (Cat. No. 1070210) to the instrument it can be used to measure the strength of magnetic fields across a magnet or magnetic coil. Designed to operate continuously for long hours. Hall Effect Probe not included.
Specifications:
Selector switch for: 0-19.99 mT, 0-199.9 mT, 0-1999 mT, which can be read directly on a 3.5 digit LCD display
Operating Voltage : 110V/220V, 50/60Hz, (user selectable)
* Magnetic Flux Density MeterPack of (Pcs): 1
SKU: 1070405 -
Magnetism & Electromagnetism, Physics

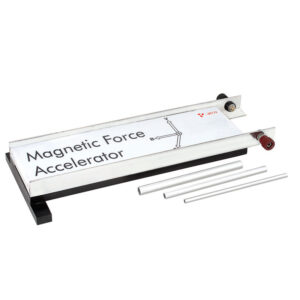

Magnetic Force Accelerator
Catalogue No: 1070930
A ramp with metal sides is filled with permanent magnets, North Pole facing up. Three Aluminum tubes of different diameters can be placed in turn across the ramp, connecting the metal sides. The ends of the ramp fitted with heavy-duty terminals to provide power input of up to 12V / 5A DC to induce sufficient acceleration in the aluminum tube. As a result the tube moves uphill rapidly to the end and shoots off breaking the circuit.
* Magnetic Force AcceleratorPack of (Pcs): 1
SKU: 1070930 -
Magnetism & Electromagnetism, Physics

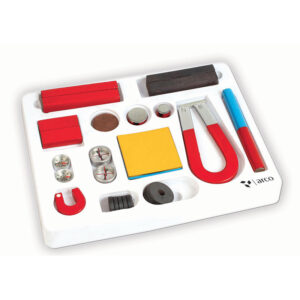

Magnetic Kit (Junior)
Catalogue No: 1070250
Kit for performing basic activities in magnetism. Al the components packed nicely in a storage tray. Comprises:
* Chrome steel horse shoe magnet with approx. 100 mm length 1 No.
* Alnico bar magnet (75 x 15 x 10)mm (L x W x T) 2 Nos.
* Alnico bar magnet (37 x 15 x 10)mm (L x W x T) 2 Nos.
* Alnico Cylindrical magnet (100 x 12)mm (L x D) 1 No.
* Ceramic bar magnet (70 x 15 x 10)mm (L x W x T) 2 Nos.
* Ceramic ring magnet (25 x 6)mm (D x T) 2 Nos.
* Disc magnets (18 x 3)mm (D x T) 5 Nos.
* Alnico horse shoe magnet (25 x 8) 1 No.
* Alnico button magnet with 18 mm diameter 1 No.
* Alnico button magnet with 10 mm diameter 1 No.
* Plotting compass with 20mm dia 2 Nos.
* Plotting compass with 16mm dia 2 Nos.
* Flexible magnetic rubber sheets of different colours 4 Nos.
* Metal discs of different materials 8 Nos.
* Magnetic Kit (junior)Pack of (Set): 1
SKU: 1070250 -
Magnetism & Electromagnetism, Physics
Magnetizing and Demagnetizing Coil
Catalogue No: 1070770
A 270-turn coil of insulated copper wire is wound on a square-ended plastic spool. Binding posts are conveniently mounted on either end of the plastic spool with shrouded sockets. The operating voltage is 6-12V AC/DC, 5A max.
* Magnetizing And Demagnetizing CoilPack of (Pcs): 1
SKU: 1070770 -
Magnetism & Electromagnetism, Physics

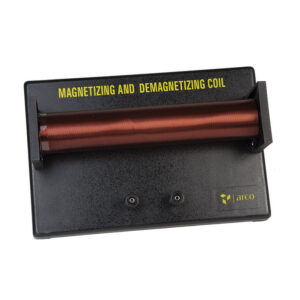

Magnetizing and Demagnetizing Coil On Base
Catalogue No: 1070760
Low voltage, suitable for magnetizing and demagnetizing ordinary magnets, iron bars, strips etc. Comprises a solenoid of size 250 x 35mm (L x D) wound with insulated copper wire and mounted on molded base with 4mm terminals.
Operating Voltage : 12V AC/DC, 6A max.
Magnetizing by DC. Demagnetizing by AC only.
* Magnetizing and Demagnetizing Coil on basePack of (Pcs): 1
SKU: 1070760
