Hydraulic Press, 3:1 Ratio

Catalogue No: 1020780

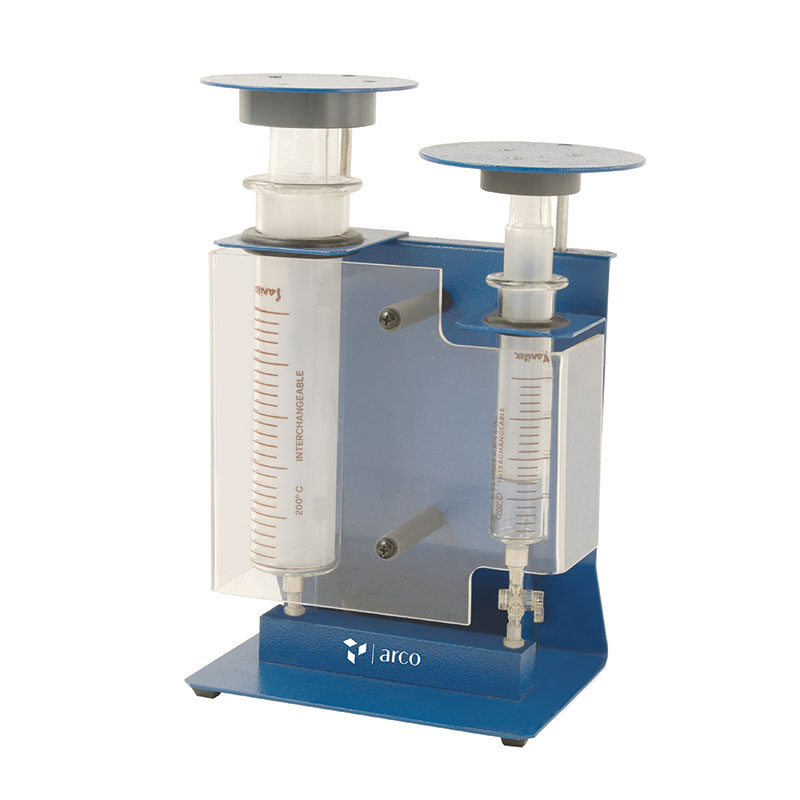

Simple construction permits the use of water or even air for demonstration of the concepts. Comprises a pair of graduated glass syringes of capacities 50cm square and 10cm square, both having fine ground pistons and provide a cross-sectional area ratio of about 3:1 respectively. Both the syringes mounted on a stable, non-skid sheet metal base with loading platform at their top and their nozzles linked to each other through a 3-position valve, by means of which they may be opened to the atmosphere, isolated or interconnected as desired. Both the pistons provided with limit-stop to prevent their complete ejection from the barrels. Thick wall of syringes makes it capable of withstanding pressures involved. The graduated syringe barrels also permit simple Boyle’s Law experiments to be performed.
* Hydraulic Press, Syringe Type

Pack of (Pcs): 1
