Simple Circuit Module, PCB Mounted
Catalogue No: 1100520/5
These simple circuit modules are intended to be used by the students to explore and familiarize with the applications of electrical / electronic components, devices and simple circuits. All modules have components directly mounted on a PCB with soft cushioned feet at the bottom and have 4mm sockets for connecting the modules in a circuit using leads. Supplied without connecting leads. Various modules available are:

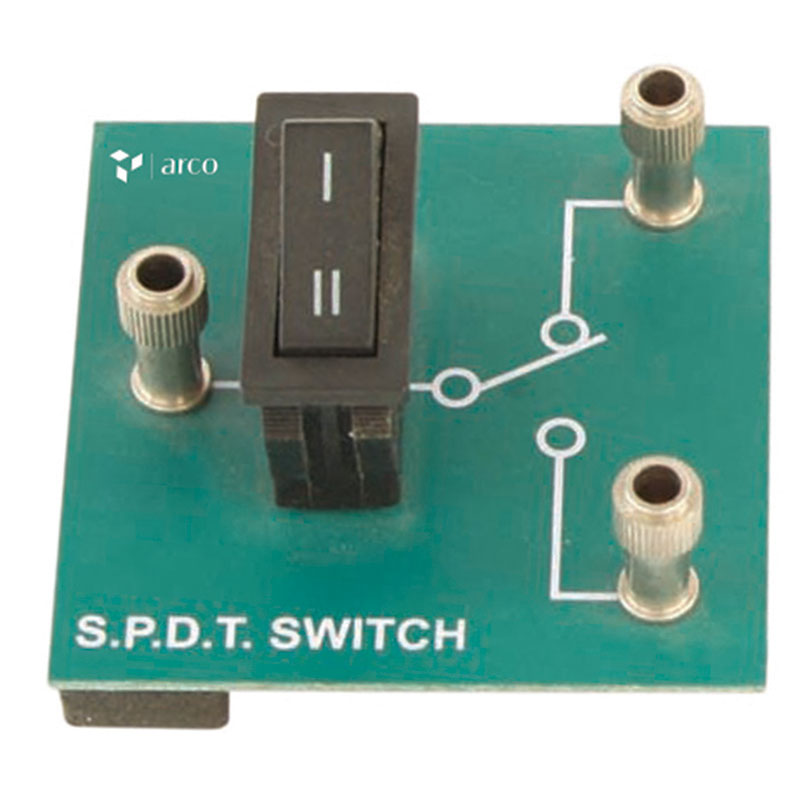

* Single Pole, Double Throw (SPDT) Switch: A two way rocker action switch providing frequent changeover between two circuits or connection / disconnection of a circuit.
Pack of (Pcs): 1
These simple circuit modules are intended to be used by the students to explore and familiarize with the applications of electrical / electronic components, devices and simple circuits. All modules have components directly mounted on a PCB with soft cushioned feet at the bottom and have 4mm sockets for connecting the modules in a circuit using leads. Supplied without connecting leads. Various modules available are:
* Single Pole, Double Throw (SPDT) Switch: A two way rocker action switch providing frequent changeover between two circuits or connection / disconnection of a circuit.
