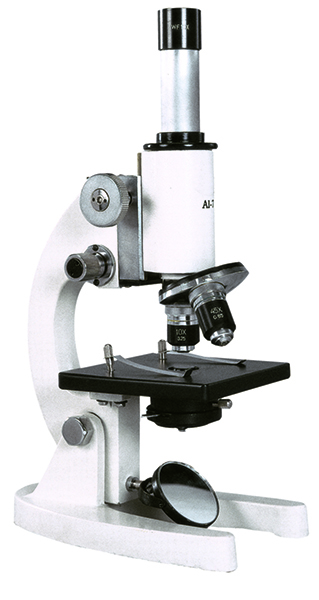

Student’s Microscope, Model AI-7
Catalogue No. 4020250
Versatile designed, inclinable through 90º with all interchangeable pressure die casting parts. Mechanical Tube Length 160mm ± 1mm. Coarse Motion by rack and pinion and fine motion slip lever type. Square stage 120 × 120mm fitted with two lens Abbe’s condenser N.A. 1.25 with continuously variable Iris diaphragm and swing out filter holder. Locking device to avoid slide damage. Standard Plano concave mirror fitted, replaceable with sub stage illumination lamp workable on 220V. Hard instrumental chrome plated parts and powder coating paint best finish. Complete with wooden carrying cabinet/Styrofoam packing (Optional).
Optical Combination
Achromatic Objectives : 4×,10×,40/45×(SL), Black/Chrome (Optional)
Eyepieces : 4/5×, 10× or 15× (Hug.) (WF also available)
Magnification : 16× to 675×.
Versatile designed, inclinable through 90º with all interchangeable pressure die casting parts. Mechanical Tube Length 160mm ± 1mm. Coarse Motion by rack and pinion and fine motion slip lever type. Square stage 120 × 120mm fitted with two lens Abbe’s condenser N.A. 1.25 with continuously variable Iris diaphragm and swing out filter holder. Locking device to avoid slide damage. Standard Plano concave mirror fitted, replaceable with sub stage illumination lamp workable on 220V. Hard instrumental chrome plated parts and powder coating paint best finish. Complete with wooden carrying cabinet/Styrofoam packing (Optional).
Optical Combination
Achromatic Objectives : 4×,10×,40/45×(SL), Black/Chrome (Optional)
Eyepieces : 4/5×, 10× or 15× (Hug.) (WF also available)
Magnification : 16× to 675×.
