Sound Waves & Oscillations

Catalogue No: 1120460/2

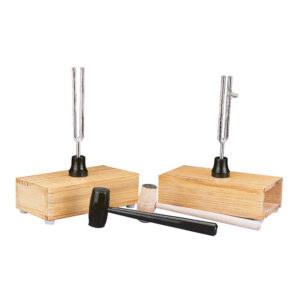

Comprises two matched nickel plated tuning forks of frequency A(426.6), each mounted on top of hollow wooden box open at one end. One fork is provided with a sliding mass on one prong by means of which its frequency can be varied from the nominal 426.6Hz. When both forks are sounded a clearly audible beat is produced, its rate depending upon the difference in frequency between the forks.
* Rubber Mounted Hammer for Tuning Forks, Disc Shaped

Pack of (Pcs): 1

Catalogue No: 1120045

This large multi-coloured plastic coil is an excellent fiddle toy and can successfully perform the essential functions, it really can walk down stairs! The rainbow of colours along its length make it extremely pretty, whilst its generous size and great play value ensure a broad appeal. The individual Plastic Springies are wrapped with an easily remove able label to discourage any tangles before purchase size 10.5cm.
* Plastic Springy

Pack of (Pcs): 1

Catalogue No: 1120515

Useful to investigate the propagation of sound waves in a tube.
Features:
* Built-in Speaker
* Built-in Metric Scale
* Movable Microphone
* Movable Piston
Function generator can be used to operate the speaker and to create stable wave patterns at specified frequencies. Standing wave patterns in a closed tube or open tube can be observed and locate nodes & antinodes while varying the length of vibrating air column of the tube. Waveforms can also be observed in detail on oscilloscope.
* Resonance Tube

Pack of (Pcs): 1

Catalogue No: 1120140/1

Useful for determining wavelength and velocity of sound in air. It Comprises of a pair of telescopically mounted metal tubes, one sliding inside other for varying the air column. Length of resonating air column helps in computing the velocity of sound. Mounted on stable base.
* Aluminum

Pack of (Pcs): 1

Catalogue No: 1120660

A specially designed versatile apparatus for the investigation of the wave properties, such as wave propagation, reflection, refraction, diffraction and interference. Permits demonstration with an overhead projector or use as a free standing bench model, allowing investigations to be carried out directly. Comprises a rectangular plastic tank with clear bottom and sloped sides incorporating beach effect to eliminate unwanted reflections. The tank has four detachable legs. One end of the tank has clamps for supporting lamp holder with a pair of clamps on each side for mounting rippler support rods. Rippler assembly comprises of a rectangular rod with series of holes suitable for mounting spherical dippers and a low voltage DC motor having eccentric cam to produce oscillatory motion.
Supplied complete with following accessories:
* Illuminant Assembly
* Set of 4 barriers – a pair of bigger L-shaped (20 – 50mm) and a pair of
smaller L-shaped barrier (20 – 35mm)
* Curved Barrier, 2cm high, with uniform radius of curvature
* Hand Stroboscope
* Convex Lens
* Concave Lens
* Rectangular Block
* 2 Spherical Dippers
* Spare Elastic Cords for suspending rippler assembly.
* Ripple Tank Apparatus

Pack of (Pcs): 1

Catalogue No: 1120650

The water waves have unique advantage of being visible and their movement can be easily controlled to allow measurements. Ripple tank provides through investigation of qualitative as well as quantitative aspects of wave motion. This ripple tank has advantage of wave motion images being conveniently available on vertical screw for better observation. Come with a comprehensive instruction manual.
Kit consists of:
* Digital stroboscope 1 No.
* Holder for stroboscope 1 No.
* Lever arm for stroboscope 1 No.
* Vibrator 1 No.
* Lever arm 1 No.
* Holder for lever arm 1 No.
* Fixing pivot 1 No.
* Height adjustment 1 No.
* Accessories kit 1 No.
* Connecting cables 1 No.
* Mirror 1 No.
* Screen 1 No.
* Detachable legs 3 Nos.
* Transverse- front legs 1 No.
* Angles for screen 2 Nos.
* Water tank 1 No.
* Glass units 1 No.
* Ripple Tank with Digital Stroboscope

Pack of (Set): 1

Catalogue No: 1120350

Capable of generating Sine & Triangular wave signals with in range 1.2kHz – 4.3kHz at 3W(max.) output. With internal speaker fitted inside the plastic case and also has provision to use external speaker via. 4mm sockets. Two colour-coded output sockets are used for connecting to CRO Frequency and amplitude are adjustable through knobs. Operates on 9V 6F22 battery.
* Signal Generator

Pack of (Pcs): 1

Catalogue No: 1120210

It is used to demonstrate the conversion of thermal energy into sound energy. On hanging it over a Bunsen burner, the heated air when passed out from the gauze fitted inside the pipe will generate sound of ship’s foghorn. Overall length of tube is 450mm approx.
* Singing Pipe

Pack of (Pcs): 1
